Victor Haugen
Member
Ah okay, I didn't know about that tool. Thank you for the advice and for the information, I will buy it promptly!
Best regards
Victor
Headshock Super Fatty - first attempt on service
- Thread starter Victor Haugen
- Start date
Ah okay, I didn't know about that tool. Thank you for the advice and for the information, I will buy it promptly!
Best regards
Victor
Barney427
Member
Hi Mike,
Thank you so much for telling me that.
Oh! 5 years isn' bad? First time I bought it 2005,It kept oil 10 years...just lucky.
anyway,I have to be able to repair by my self like Viktor.
I will get both Seal kit, and HDTL146,HDTL187(you told me) right?
Hi Viktor,
Yes! You are right.It has mount of Diskbrake. So possible to fit it
It was sold with V brake and Blocktire.(I changed it to 700C as I usually use it in City.)
I think F400 was the low-grade,Other Higher model had Diskbrake.
Most of Japanese who has Cannondale with Headshock gave up to repair during this 5 years.
So they modified it to Normal double fork suspension or They sold it away very very cheap...Oh no,,, If I met Viktor Mike before 5 years... I could tell them.

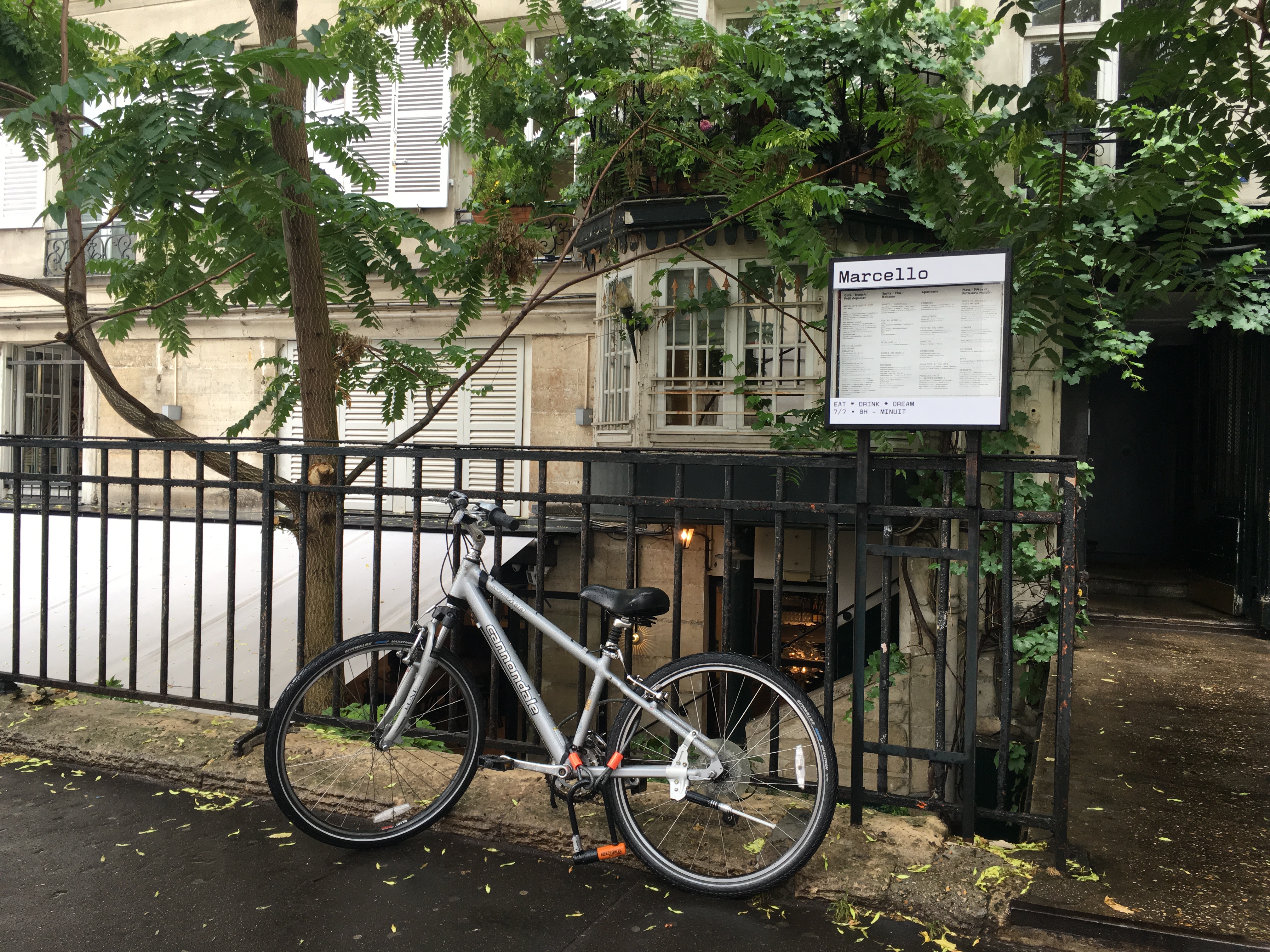

This is my girlfriend's bike,Comfort 400. It has originally double fork.
Bestregards
Thank you so much for telling me that.
Oh! 5 years isn' bad? First time I bought it 2005,It kept oil 10 years...just lucky.
anyway,I have to be able to repair by my self like Viktor.
I will get both Seal kit, and HDTL146,HDTL187(you told me) right?
Hi Viktor,
Yes! You are right.It has mount of Diskbrake. So possible to fit it
It was sold with V brake and Blocktire.(I changed it to 700C as I usually use it in City.)
I think F400 was the low-grade,Other Higher model had Diskbrake.
Most of Japanese who has Cannondale with Headshock gave up to repair during this 5 years.
So they modified it to Normal double fork suspension or They sold it away very very cheap...Oh no,,, If I met Viktor Mike before 5 years... I could tell them.
This is my girlfriend's bike,Comfort 400. It has originally double fork.
Bestregards
Last edited:
MikeA
Well-Known Member
Yes, and don't forget the HDTL168 bullet tool to install the lower cap.
Last edited:
Victor Haugen
Member
Does anyone know if any of these tools can be used on my fork ?
https://qwertycycles.co.uk/products/cannondale-lefty-stem-steerer-install-removal-tool-ernie-kt020
https://www.cannondale-parts.de/Lefty-assembly-tool
They look slightly different but have the same product name: KT020
https://qwertycycles.co.uk/products/cannondale-lefty-stem-steerer-install-removal-tool-ernie-kt020
https://www.cannondale-parts.de/Lefty-assembly-tool
They look slightly different but have the same product name: KT020
MikeA
Well-Known Member
That tool is designed for Leftys. While it can be used to remove your fork from the frame, it is not necessary and probably not worth buying.
Last edited:
Victor Haugen
Member
Ah okay I see. I saw this tool in this video on youtube:
But I think you are right, it's better to use something else and then save the money.
Thanks again.
Last edited:
MikeA
Well-Known Member
The long length of the tool makes it look awkward to use in that video. The most common recommended method is to use a deadblow hammer on a socket that fits around the hex. In some literature they have recommended setting the HD136 top cap tool in place and hammering on that.
Barney427
Member
Hello Mike,and Viktor.
Are you in this site? I hope you guys doing well and enjoy riding.
I have bought Oil seals and Tools , now waiting for them.
I found the man manufacturing Special Tools! Here is website.
I think It works for someone want to repair HeadShock and Lefty. https://improvepart.com/5/
Are you in this site? I hope you guys doing well and enjoy riding.
I have bought Oil seals and Tools , now waiting for them.
I found the man manufacturing Special Tools! Here is website.
I think It works for someone want to repair HeadShock and Lefty. https://improvepart.com/5/
Victor Haugen
Member
Hi
I still drop by here now and then.
My fork is still performing well after the service that I did and I enjoy riding my vintage Cannondale
Good to hear that you have got the tools and parts for your headshock fork!
Best of luck with the repair/service, hope all goes well as some of it can be a bit tricky...
Victor
Victor Haugen
Member
Hi, without knowing the exact type of fork and model year, as far as I know there should be nothing that prevents the air cylinder from coming out just as the damper did. I would recommend trying to push it gently out from below, or maybe someone else has a better suggestion ?
Victor
MikeA
Well-Known Member
I drive it out with a wood 7/8" dowel rod. I have a hole drilled in the end large enough for the schrader valve to fit inside so i'm driving directly against the cylinder and not the valve.
First though, if you have a DL80 , the piston should have come out with the damper, not left in the air cylinder since it is threaded on. Second, if you have a DL80 with a silver schrader valve cap, there is no removable air cylinder, however you can remove the cap. Can you upload some pictures of the fork and damper for identification?
Last edited:
MikeA
Well-Known Member
I would just leave it in place to avoid damaging it. The end cap is not replaceable anyway, it is manufactured as part of the air cylinder. There are no other seals to replace if you remove the cylinder. An air leak will be repaired with piston o-rings if the inside of the cylinder is not damaged. If necessary, the valve core can be replaced from the outside.
jakub_a
Member
Thank you. If I got the cylinder out I would at least attempt to restore the valve outer thread.
I’m wondering if it’s heavy corrosion (I used this bike to commute all year long for 15 years straight) that is holding it in place or is there some sort of a circlip that wont Let go. I can see a small 3mm gap there.
speaking of seals. The HD166 set is impossible to get but the seals must be standard - Is there any info whether they are metric or not and their dimensions?
I’m wondering if it’s heavy corrosion (I used this bike to commute all year long for 15 years straight) that is holding it in place or is there some sort of a circlip that wont Let go. I can see a small 3mm gap there.
speaking of seals. The HD166 set is impossible to get but the seals must be standard - Is there any info whether they are metric or not and their dimensions?
MikeA
Well-Known Member
The retaining ring at the bottom is what the air cylinder bottoms out against when it is slid in from the top. It does not need to be removed and would do you no good even if you got it out. With the damper out, the air cylinder slides right out the top, there is nothing more for you to remove to get it out. Yours is just stuck.
Yes the seals are standard off the shelf parts. Cannondale has used a mix of SAE and metric, but I think everything in the HD166 kit is SAE. I have the numbers in my notes somewhere, I can look for them later for you.
Yes the seals are standard off the shelf parts. Cannondale has used a mix of SAE and metric, but I think everything in the HD166 kit is SAE. I have the numbers in my notes somewhere, I can look for them later for you.
