Where can I find an original Castle Tool to service my DD60?

[John J]



[John J]

Or, does anyone have a creative solution to take a common tool and mod it to work instead?



[black lightning 1987]

Could you measure to the outside edges of two opposite pin holes? Wondering if ISIS BB cup tool could be modified to work.

https://www.ebay.com/itm/PARK-TOOL-...=item2ed658ef5a:g:X3UAAOSwdTJaV6Dg:rk:48:pf:0

Are the pin holes square? Would round pins work? I might be able to make a tool with round pins if I had some dimensions.

You might check with Craig at Mendon Cyclesmith. He services headshoks and leftys.

http://mendoncyclesmith.com/



[black lightning 1987]

Not cheap, but there's one on eBay. Still believe I could make one.

https://www.ebay.com/itm/Cannondale...=item5215cfe6fa:g:U1QAAOSwXI1cIsNM:rk:30:pf:0



[JimGreen]

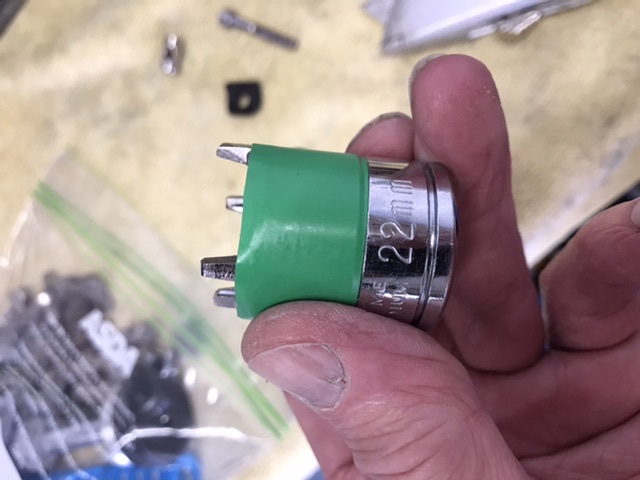

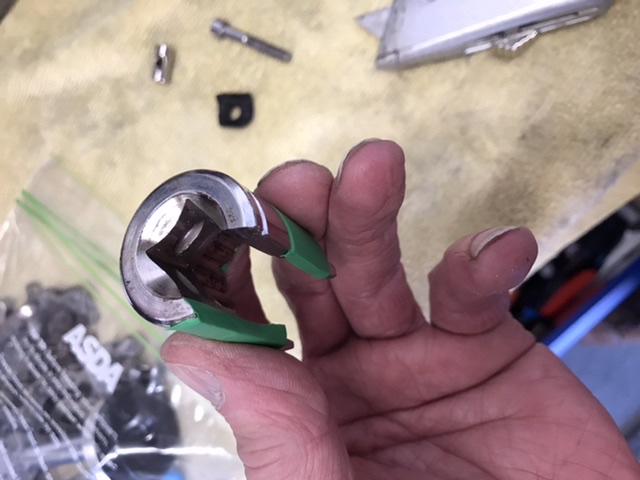

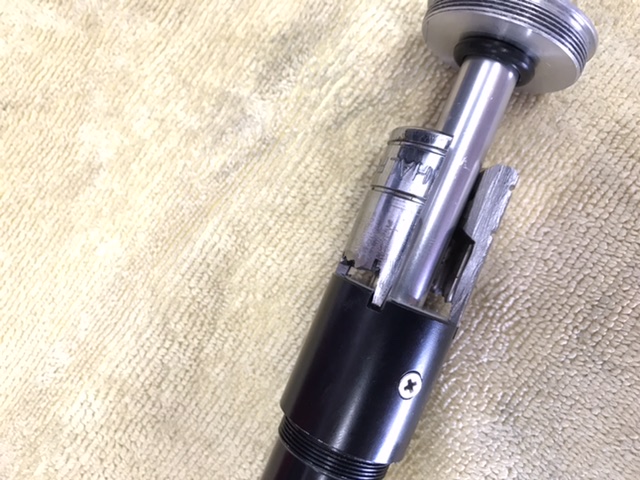

I cut up a 22mm socket, a lot of hacksawing and it doesn’t look pretty, but does the job perfectly with no damage to the damper.



[black lightning 1987]

Nice work Jim.



[MikeA]

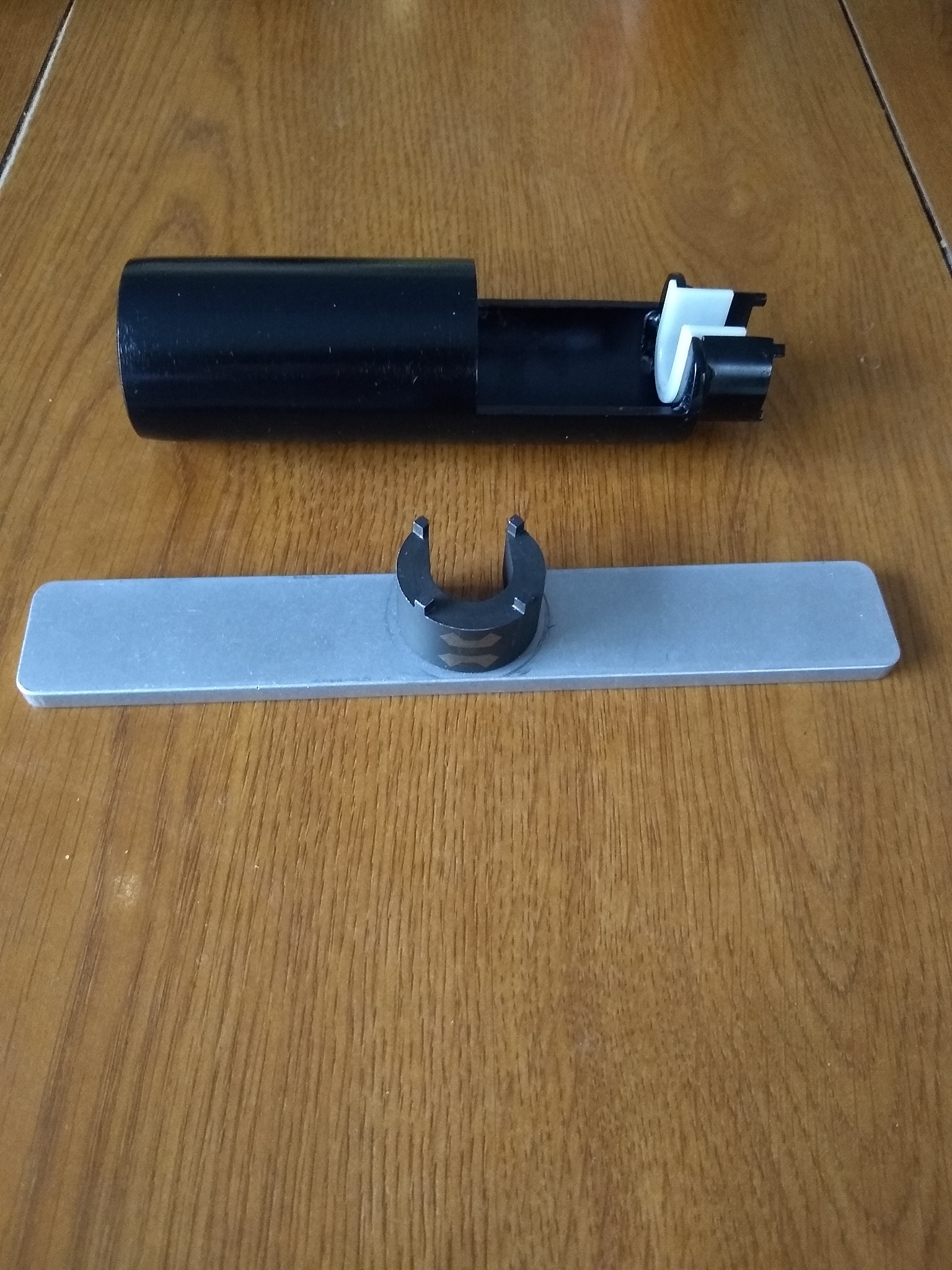

The KH031 super castle tool replaces the original tool, and is still available. I found it doesn't fit around the top cap of the 2005+ DL80, but it works on the DLR80 and all the older forks. The original style HDTL146 is currently made aftermarket by Leonardi, if you wanted that one.
